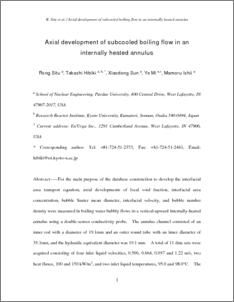

Axial development of subcooled boiling flow in an internally heated annulus
Situ, Rong, Hibiki, Takashi, Sun, Xiaodong, Mi, Ye, and Ishii, Mamoru (2004) Axial development of subcooled boiling flow in an internally heated annulus. Experiments in Fluids, 37 (4). pp. 589-603.
|PDF (Accepted Version) - Requires a PDF viewer such as GSview, Xpdf or Adobe Acrobat Reader|
|PDF (Published Version) - Repository staff only - Requires a PDF viewer such as GSview, Xpdf or Adobe Acrobat Reader|
View at Publisher Website: http://dx.doi.org/10.1007/s00348-004-085...
For the main purpose of database construction in order to develop the interfacial area transport equation, axial developments of local void fraction, interfacial area concentration, bubble Sauter mean diameter, interfacial velocity, and bubble number density were measured in boiling water bubbly flows in a vertical-upward internally heated annulus using a double-sensor conductivity probe. The annulus channel consisted of an inner rod with a diameter of 19.1 mm and an outer round tube with an inner diameter of 38.1 mm, and the hydraulic equivalent diameter was 19.1 mm. A total of 11 data sets were acquired consisting of four inlet liquid velocities, 0.500, 0.664, 0.987 and 1.22 m/s, two heat fluxes, 100 and 150 kW/m2, and two inlet liquid temperatures, 95.0 and 98.0 degrees Celcius. The axial developments of the flow parameters were discussed based on the measured data in detail. In addition to the database construction, the measured data validated recently proposed constitutive equations for the distribution parameter, drift velocity, and bubble Sauter mean diameter, which will improve the accuracy of the drift-flux model in subcooled bubbly flow.
|Item Type:||Article (Refereed Research - C1)|
The final publication is available at www.springerlink.com
|FoR Codes:||09 ENGINEERING > 0915 Interdisciplinary Engineering > 091504 Fluidisation and Fluid Mechanics @ 50%|
09 ENGINEERING > 0915 Interdisciplinary Engineering > 091505 Heat and Mass Transfer Operations @ 50%
|SEO Codes:||85 ENERGY > 8504 Energy Transformation > 850403 Nuclear Energy @ 50%|
85 ENERGY > 8507 Energy Conservation and Efficiency > 850701 Commercial Energy Conservation and Efficiency @ 50%
