Stability analysis of nonlinear power electronics systems utilizing periodicity and introducing auxiliary state vector
Dranga, Octavian, Buti, Balazs, Nagy, Istvan, and Funato, Hirohito (2005) Stability analysis of nonlinear power electronics systems utilizing periodicity and introducing auxiliary state vector. I E E E Transactions on Circuits and Systems Part 1: Fundamental Theory and Applications , 52 (1). pp. 168-178.

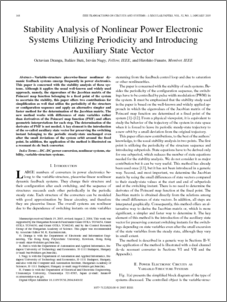

|PDF - Requires a PDF viewer such as GSview, Xpdf or Adobe Acrobat Reader|
Variable-structure piecewise-linear nonlinear dynamic feedback systems emerge frequently in power electronics. This paper is concerned with the stability analysis of these systems. Although it applies the usual well-known and widely used approach, namely, the eigenvalues of the Jacobian matrix of the Poincare/spl acute/ map function belonging to a fixed point of the system to ascertain the stability, this paper offers two contributions for simplification as well that utilize the periodicity of the structure or configuration sequence and apply an alternative simpler and faster method for the determination of the Jacobian matrix. The new method works with differences of state variables rather than derivatives of the Poincare/spl acute/ map function (PMF) and offers geometric interpretations for each step. The determination of the derivates of PMF is not needed. A key element is the introduction of the so-called auxiliary state vector for preserving the switching instant belonging to the periodic steady-state unchanged even after the small deviations of the system orbit around the fixed point. In addition, the application of the method is illustrated on a resonant dc-dc buck converter.
© 2005 IEEE. : Reproduced in accordance with publisher policy. : This material is presented to ensure timely dissemination of scholarly and technical work. Copyright and all rights therein are retained by authors or by other copyright holders. All persons copying this information are expected to adhere to the terms and constraints invoked by each author's copyright. In most cases, these works may not be reposted without the explicit permission of the copyright holder.
|Keywords:||dc-dc converters, Nonlinear systems, Stability, Variable-structure systems|
|FoR Codes:||09 ENGINEERING > 0906 Electrical and Electronic Engineering @ 0%|
|Deposited On:||17 Oct 2006|
|Last Modified:||02 Nov 2012 08:45|
